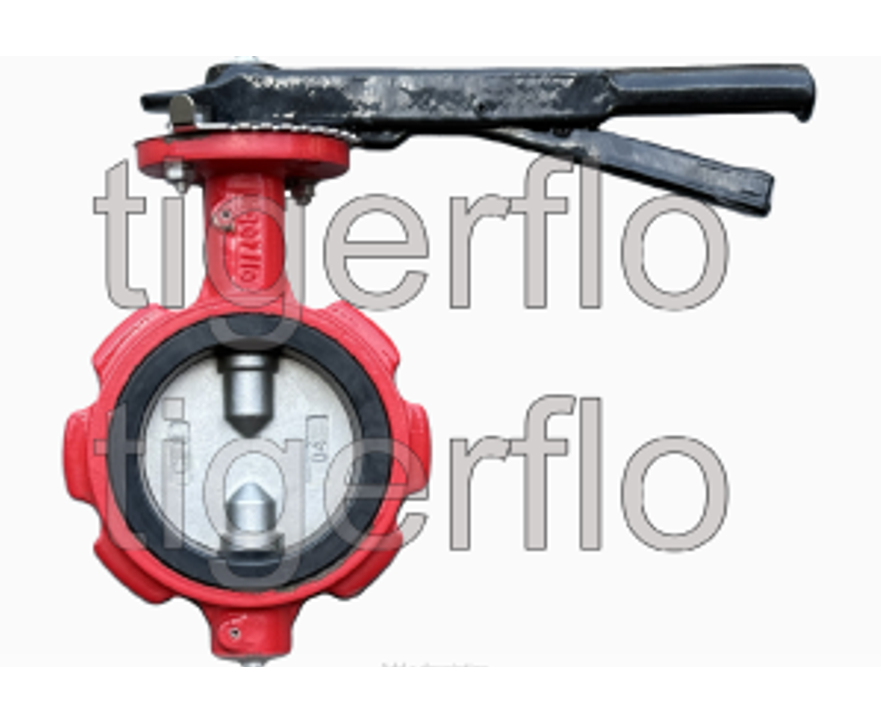

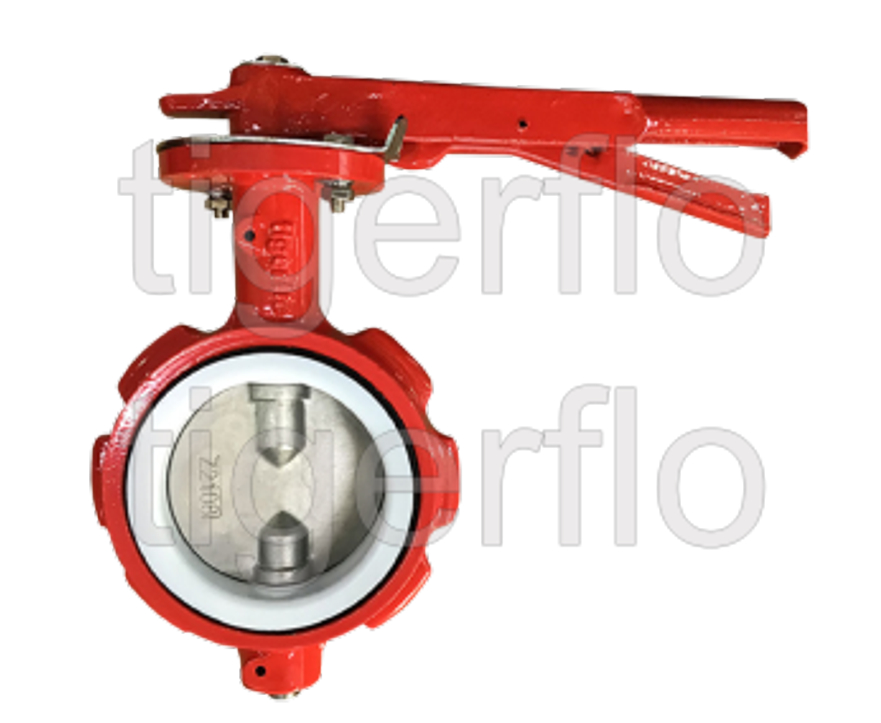

WAFER BUTTERFLY VALVE – PTFE SEAT, SS DISC
FEATURES & BENEFITS
- Suitable for various applications (liquids, gases and slurries), check before use Butterfly Valve compatibility with fluids to be handled.
- Heavy duty robust design and construction.
- Low maintenance cost, easy for maintenance, parts available and replaceable.
Description
| Type | Wafer |
| Face to Face | API609, BS5155, DIN3202, ISO5752 |
| Flange | DIN, BS, UNI, ISO, ANSI, AS, JIS |
| Mounting Flange | ISO5211 |
| Working Pressure | PN16 (200PSI) |
| Applications in Various Industries | Water, Mining, Construction, Dewatering, Municipal, Wastewater, Agriculture, Slurry, Marine, Oilfield, Petrochemical, Paper, Pulp, Food & Beverages & various application |
MAIN COMPONENTS MATERIAL
| ITEM DESCRIPTION | MATERIAL | ITEM NUMBER |
|---|---|---|
| Body | DI | 1 |
| Seat | PTFE | 2 |
| Lower Shaft | SS416 | 3 |
| Disc | SSCF8 | 4 |
| Upper Shaft | SS416 | 5 |
| O-Ring | EPDM | 6 |
| Bushing | PTFE | 7 |
| Bolts | SS201 | 8 |
MODEL & DIMENSIONS
| MODEL | SIZE | C | PN16 (D1) | PN10 (D1) | ANSI 150 (D1) | |
|---|---|---|---|---|---|---|
| in | DN | |||||
| BFV-TF50PTFE-SS | 2 | 50 | 42 | 125 | 125 | 120 |
| BFV-TF65PTFE-SS | 2.5 | 65 | 44 | 145 | 145 | 139 |
| BFV-TF80PTFE-SS | 3 | 80 | 45 | 160 | 160 | 152 |
| BFV-TF100PTFE-SS | 4 | 100 | 52 | 180 | 180 | 190 |
| BFV-TF125PTFE-SS | 5 | 125 | 54 | 210 | 210 | 216 |
| BFV-TF150PTFE-SS | 6 | 150 | 55 | 240 | 240 | 241 |
| BFV-TF200PTFE-SS | 8 | 200 | 60 | 295 | 295 | 298 |
| BFV-TF250PTFE-SS | 10 | 250 | 65 | 355 | 350 | 362 |
